HDC Classic Háþrýstistöð – fleiri en 1 samtímis notandi

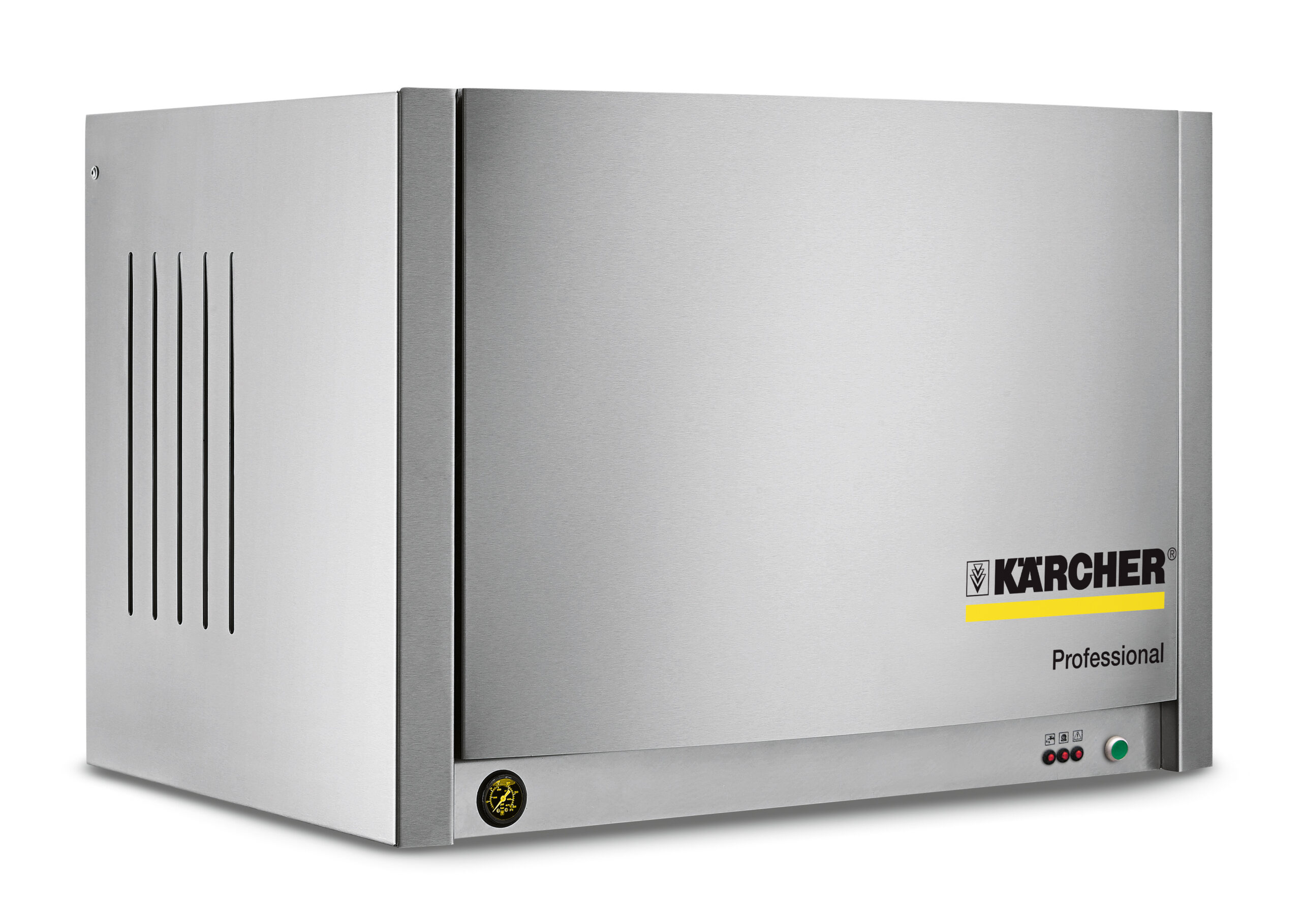

HDC Classic er kyrrstæð háþrýstidæla fyrir iðnaðarþrif, ætluð fyrir erfið þrif. Allt að tveir notendur geta unnið samtímis á mismunandi stöðum með tækinu og vatnsmagnið er 2000 l/klst. Nauðsynlegur vinnuþrýstingur er stillanlegur; hægt er að velja tæki fyrir allt að 80 bör eða allt að 160 bör. HDC Classic er með geymslutanki og fljótaloka, þurrhlaupavörn, vatnshitamælingu í inntakinu, lekagreiningu, mótorverndarrofa og vafningarvörn fyrir mótor háþrýstisdælunnar, rekstrartímamæli og villuboðaskjá sem staðalbúnað. Inntakshitastigið er 60°C. Sem valmöguleiki er hægt að setja upp háþrýstidælu fyrir hámarks inntakshita upp að 85°C. Notkunarsvið eru meðal annars iðnaður, landbúnaður og opinber þjónusta. Rammar og hlífar úr ryðfríu stáli og duftlökkuðu stáli eru fáanlegar sem valmöguleiki. Iðnaðarsveifarásdælan, messingdæluhausinn og 4-póla lághraða rafmótorinn (1450 snúningar á mínútu) eru afar endingargóð og hentug fyrir þung þrif.
Hafið samband fyrir verðtilboð, í s:581-2333 eða rafver@rafver.is
Lýsing
Features and benefits
Durable and robust
- Robust machine that is also suitable for more heavy-duty jobs.
- Robust crankshaft pump with brass cylinder head and high-quality materials ensure a long service life.
- Four-pole, low-speed air-cooled electric motor.
High machine safety
- Storage tank with float valve and dry-running protection.
- Practical error display informs users immediately and saves time.
Permanent installation with no hazards: No contamination or loose hoses
- With water shortage protection and temperature monitoring of motor and water.
- Leakage protection and soft start.
- Automatic shutdown if the minimum quantity is not reached during the water removal.
Individually configurable device

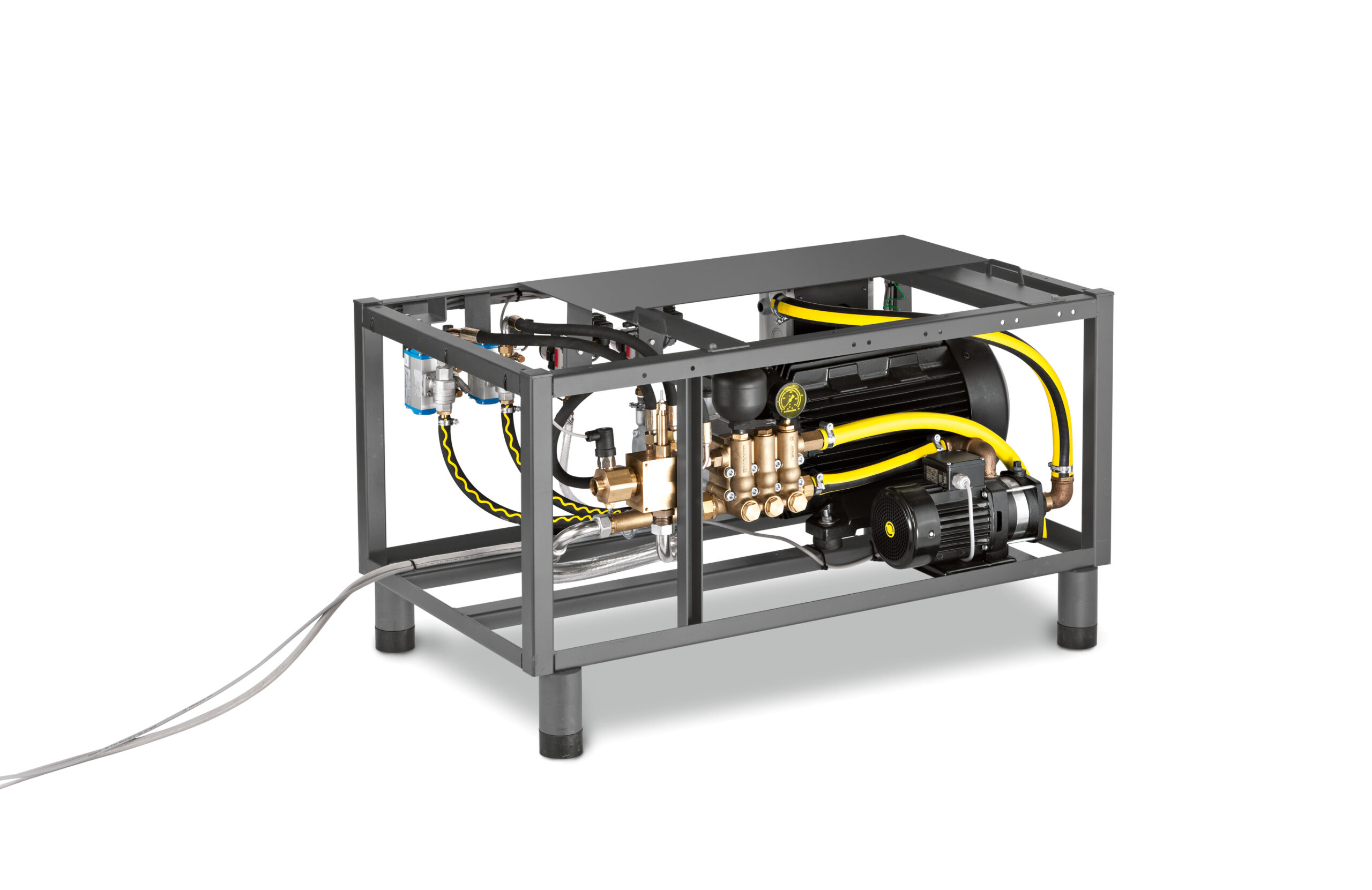

- Frame and/or casing in stainless steel are available as an option.
High flexibility
- Advance pressure pump for feed temp. up to 85 °C (standard 60 °C) and 80/160 bar pressure
- Frame and casing in stainless steel (powder-coated steel as standard).
- 60-Hz devices (e.g. 380–480 V, 690 V/60 Hz) upon request.
Is ready for use quickly at any time
- Further accessory parts or equipment can be attached.
- Can be adjusted to individual cleaning requirements.
- Can be used by two persons at the same time.
- Ready at the push of a button, with no set-up times or transporting mobile machines.
- The pump starts as soon as the trigger gun is activated, allowing convenient working from any supply point.
- For fast cleaning at different locations of use.
Is ready for use quickly at any time
Robust design for harsh working conditions
- Designed for daily use.
- Can be used under tough working conditions.
- Longer service life, less maintenance effort and lower costs. Ideal for industrial use.
Technical data
| Pressure (bar/MPa) | 80 – 160 / 8 – 16 – 16 |
| Flow rate (l/h) | 700 / 2000 |
| Inlet temperature (°C) | max. 85 |
| Motor start-up | Soft start |
| Number of pumps (Piece(s)) | 1 |
| Number of current phases (Ph) | 3 |
| Voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Dimensions (L × W × H) (mm) | 860 x 595 x 580 |
Equipment
- Oil dipstick
- Sight glass for oil level
- 4-pole motor (low-speed machine)
- Air-cooled motor
- Crankshaft pump with ceramic pistons
- Dry-running protection
- Storage tank with float valve
- Elapsed time counter
- Servo Control
- Pressure cut-off
